IKO Innovi™ TPO Single-Ply
-

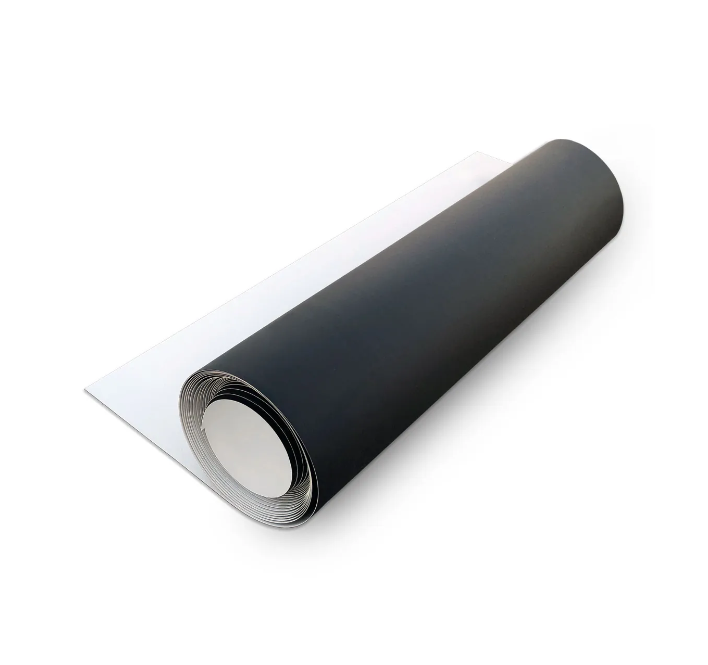

IKO Innovi TPO 45-mil
IKO Innovi™ TPO 45-mil, single-ply membrane features Matrix™ performance weathering technology. This advanced thermoplastic polyolefin formulation utilizes breakthrough chemistry that underlies IKO InnoviTPO’s ability to withstand ultraviolet and harsh climate conditions. IKO InnoviTPO is reflective, generating energy savings year over year. Designed for commercial roofing applications, IKO InnoviTPO has exceptional membrane longevity and is inherently puncture-resistant for low maintenance.
Also available in 60 and 80-mil thicknesses, and in white, grey and tan, IKO InnoviTPO is reinforced with polyester for maximum durability. Depending on the specification requirements, IKO InnoviTPO 45-mil single-ply membrane can be installed mechanically attached or fully adhered. IKO can provide full-system limited warranty coverage options. Designed to meet and exceed ASTM standards for weathering resistance, IKO InnoviTPO can provide for LEED® design credits, meriting the reputation for performance innovation.
-
IKO Innovi™ TPO 60-mil
IKO Innovi™ TPO 60-mil, single-ply membrane features Matrix™ performance weathering technology. This advanced thermoplastic polyolefin formulation utilizes breakthrough chemistry that underlies IKO InnoviTPO’s ability to withstand ultraviolet and harsh climate conditions. IKO InnoviTPO is reflective, generating energy savings year over year. Designed for commercial roofing applications, IKO InnoviTPO has exceptional membrane longevity and is inherently puncture-resistant for low maintenance.
Also available in 45-mil and 80-mil thicknesses, and in white, grey and tan, IKO InnoviTPO is reinforced with polyester for maximum durability. Depending on the specification requirements, IKO InnoviTPO 60-mil single-ply membrane can be installed mechanically attached or fully adhered. IKO can provide full-system limited warranty coverage options up to 20 years. Designed to meet and exceed ASTM standards for weathering resistance, IKO InnoviTPO can provide for LEED® design credits, meriting the reputation for performance innovation.
-
IKO Innovi™ TPO 80-mil
IKO Innovi™ TPO 80-mil, single-ply membrane features Matrix™ performance weathering technology. This advanced thermoplastic polyolefin formulation utilizes breakthrough chemistry that underlies IKO InnoviTPO’s ability to withstand ultraviolet and harsh climate conditions.
IKO InnoviTPO is reflective, generating energy savings year over year. Designed for commercial roofing applications, IKO InnoviTPO has exceptional membrane longevity and is inherently puncture-resistant for low maintenance. Also available in 45-mil and 60-mil thicknesses, and in white, grey and tan, IKO InnoviTPO is reinforced with polyester for maximum durability. Depending on the specification requirements, IKO InnoviTPO 80-mil single-ply membrane can be installed mechanically attached or fully adhered. IKO can provide full-system limited warranty coverage options up to 30 years. Designed to meet and exceed ASTM standards for weathering resistance, IKO InnoviTPO can provide for LEED® design credits, meriting the reputation for performance innovation.

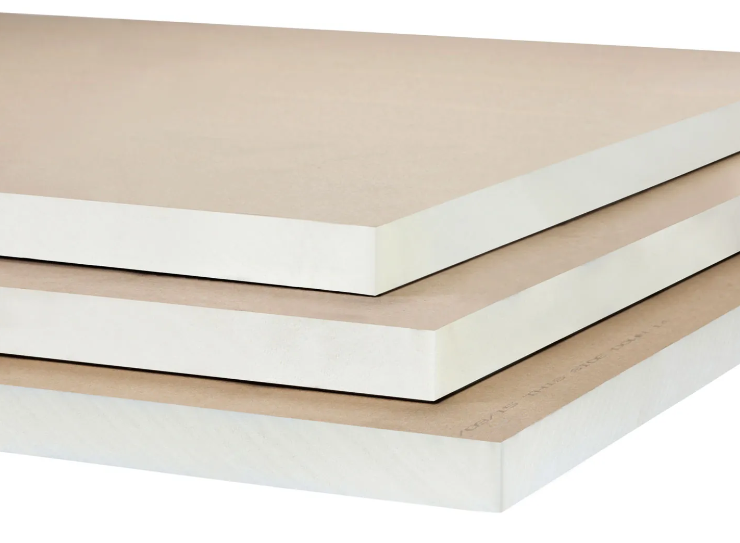

IKOTherm Polyisocyanurate Foam Insulation
-
IKOTherm Polyisocyanurate Foam Insulation
IKOTherm Polyisocyanurate Foam Insulation is designed to be part of modified bitumen, built-up, or single-ply roof systems. IKOTherm Polyiso is composed of a select kraft paper reinforced with fiberglass strands for high strength and excellent absorption for both hot mopping and adhesive attachment methods.
The product also performs well with mechanical fasteners. IKOTherm is a rigid, polyisocyanurate foam insulation with high thermal properties, which provide outstanding insulation protection and help to reduce heating and cooling costs. Lightweight and easy to handle, IKOTherm is available in two board sizes and a range of thicknesses to meet a variety of insulation needs.
-
IKOTherm - 25 PSI Grade Polyisocyanurate Foam Insulationl
IKOTherm - 25 PSI Grade Polyisocyanurate Foam Insulation is designed to be part of modified bitumen, built-up, or single-ply roof systems. IKOTherm - 25 PSI Grade is composed of a select kraft paper reinforced with fiberglass strands for high strength and excellent absorption for both hot mopping and adhesive attachment methods.
The product also performs well with mechanical fasteners. The product is a rigid, polyisocyanurate foam insulation with a high thermal R-value that provides outstanding insulation protection, which helps to reduce heating and cooling costs. Lightweight and easy to handle, IKOTherm – 25 PSI Grade is available in two board sizes and a range of thicknesses to meet a variety of insulation needs.
-

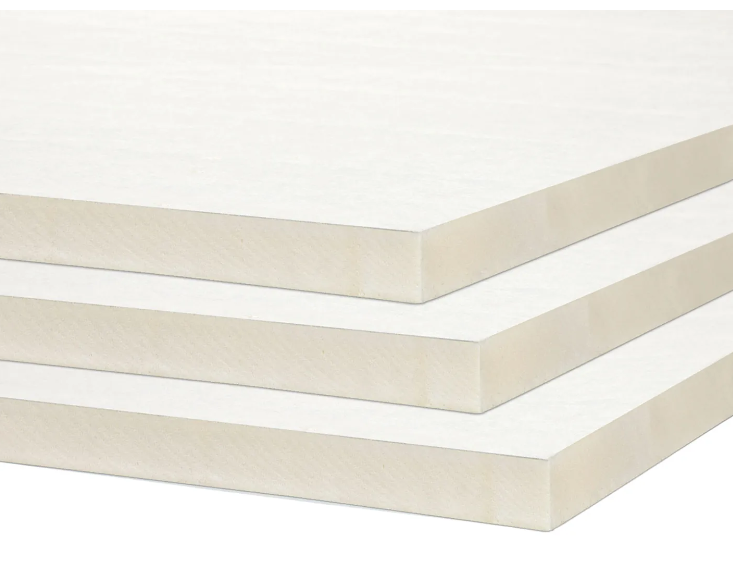

IKOTherm III & IKOTherm III Tapered Polyisocyanurate Foam Insulation
IKOTherm III Polyisocyanurate Foam Insulation has a non-organic coating bonded to a fiberglass strand mat for superior dimensional stability and resistance to moisture. The product is a rigid, polyisocyanurate foam insulation with a high thermal R-value that provides outstanding insulation protection, helping to reduce heating and cooling costs.
The product is designed to be part of a hot or cold applied modified bitumen , single ply or built-up roof system . Lightweight and easy to handle, IKOTherm III is available in two board sizes and a range of thicknesses and tapers to meet a variety of insulation needs.
-
IKOTherm III 25 PSI Grade Polyisocyanurate Foam Insulation
IKOTherm III 25 PSI Grade olyisocyanurate Foam Insulation is constructed of a non-organic coating bonded to a fiberglass strand mat, offering superior dimensional stability and resistance to moisture. As a rigid polyisocyanurate foam insulation, IKOTherm III 25 PSI Grade has a high thermal R-value that provides outstanding insulation protection, which helps to reduce heating and cooling costs.
Lightweight and easy to handle, IKOTherm III 25 PSI Grade is designed to be part of a hot or cold applied modified bitumen , single ply or built-up roof system and is available in multiple board sizes and a range of thicknesses to meet a variety of insulation needs.
-
IKOTherm CoverShield Polyiso HD Cover Board
IKOTherm CoverShield Polyiso HD Cover Board is a rigid, olyisocyanurate foam insulation with high thermal properties designed for use as a cover board. The product is constructed from a closed cell polyisocyanurate foam core bonded on each side to coated glass fiber facers during manufacturing.
IKOTherm CoverShield has a much higher compressive strength than conventional polyiso roof insulations , is dimensionally stable and can be sized with ease.
InnoviBond™
-

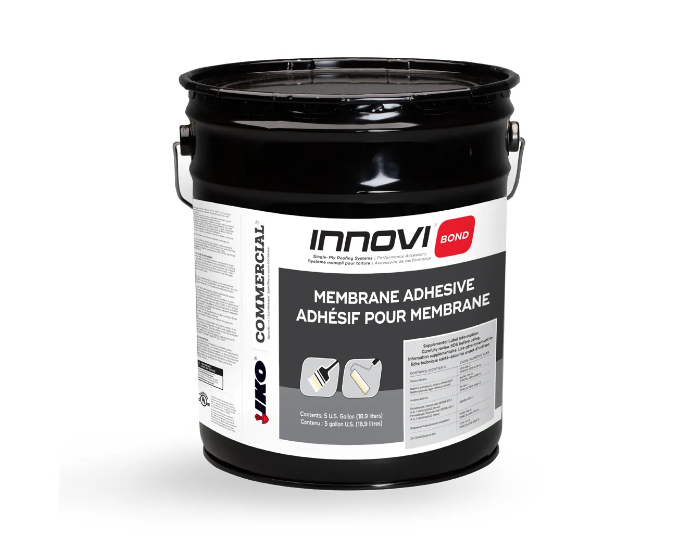

InnoviBond™ Membrane Adhesive
InnoviBond™ Membrane Adhesive is used for easy installation of IKO Innovi™ TPO thermoplastic polyolefin single-ply roofs. It bonds to polyisocyanurate standard and high-density insulation boards, primed glass mat gypsum board, OSB, plywood, metal and clean concrete.
InnoviBond Membrane Adhesive can be applied with solvent-resistant paint rollers, commercially available dispensers or spray rigs. The quick bonding time results in labor and job savings. InnoviBond Membrane Adhesive is an important component in the successful installation of an IKO InnoviTPO commercial roofing system and can help qualify for an appropriate IKO Diamond Shield Limited Warranty.
-

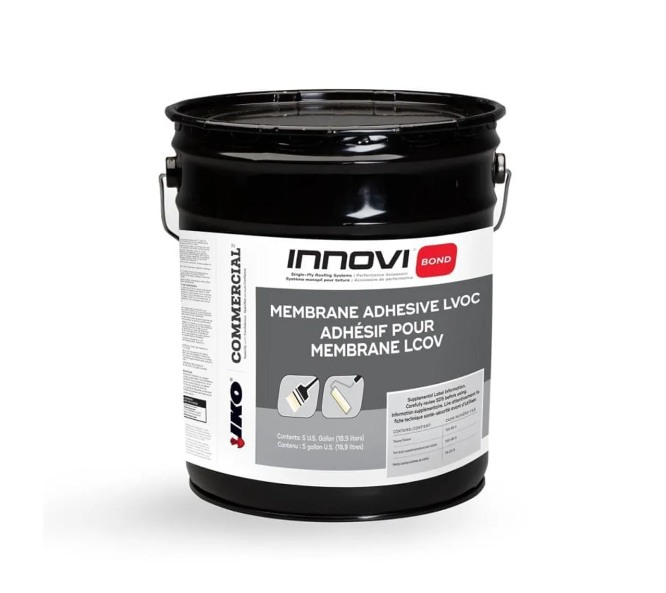

InnoviBond™ Membrane Adhesive LVOC
InnoviBond™ Membrane Adhesive LVOC is used for easy installation of IKO Innovi ™ TPO thermoplastic polyolefin single-ply roofs. It bonds to polyisocyanurate standard and high-density insulation boards, primed glass mat gypsum board, OSB, plywood, metal and clean concrete block. With a low VOC content of 216g/L, IKO InnoviBond Membrane Adhesive LVOC can be used in regulated markets.
This high-strength adhesive can be applied with solvent-resistant paint rollers, commercially available adhesive dispensers or spray rigs. The quick bonding time results in labor and job savings. InnoviBond Membrane Adhesive LVOC is an important component in the successful installation of an IKO InnoviTPO commercial roofing system and can help qualify for an appropriate IKO Diamond Shield Limited Warranty.
-

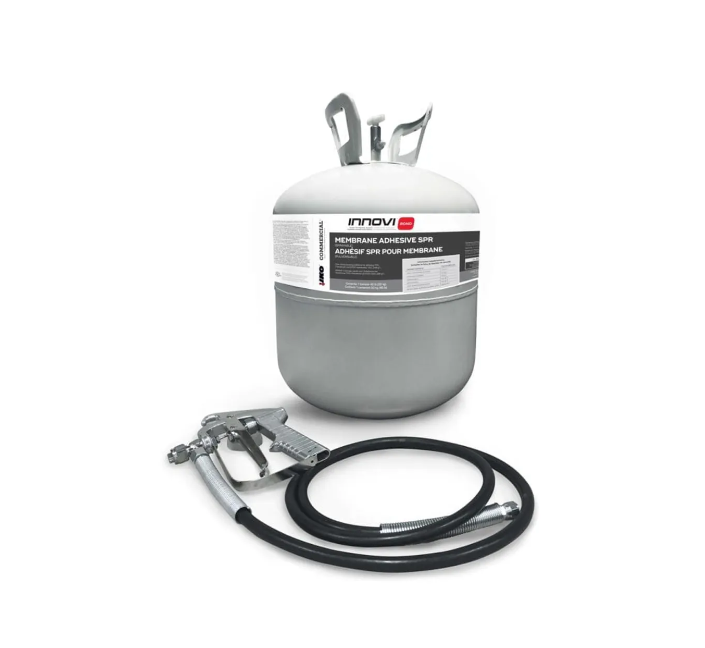

InnoviBond™ Membrane Adhesive SPR (Sprayable)
InnoviBond™ Membrane Adhesive SPR (Sprayable) is used for easy installation of IKO Innovi ™ TPO thermoplastic polyolefin single-ply roofs. With a low-VOC content (<250 g/L), it can be used in VOC-regulated markets. It bonds to polyisocyanurate standard and high-density insulation boards, primed glass mat gypsum board, OSB, plywood, metal and clean concrete. The adhesive is applied to both the membrane and the substrate mate.
IKO InnoviBond Membrane Adhesive SPR is fast-drying, allowing for speedy membrane lay-in. The bonding performance is tenacious and quick. The product can be applied at low temperatures 25°F (-4°C), extending the roofing season. InnoviBond Membrane Adhesive SPR is an important component in the successful installation of an IKO InnoviTPO commercial roofing system and can help qualify for an appropriate IKO Diamond Shield Limited Warranty.
-

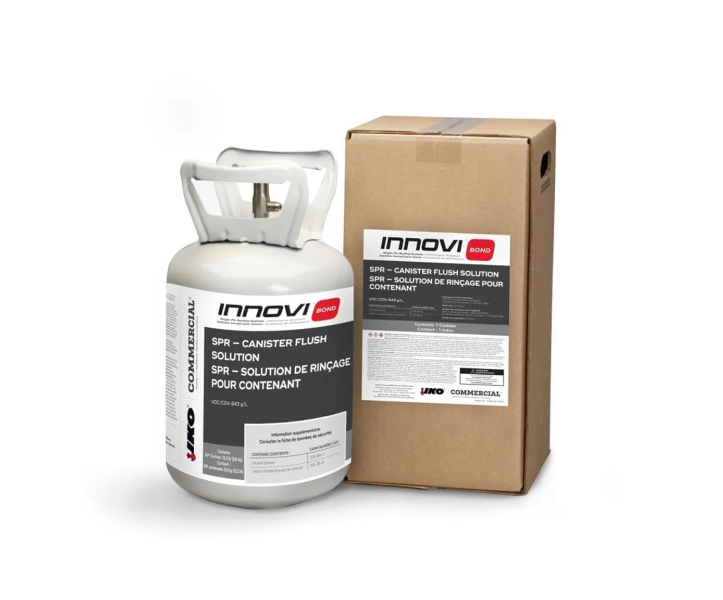

InnoviBond™ SPR
InnoviBond™ SPR — Canister Flush Solution is excellent for cleaning and flushing adhesive applicators, hoses, spray tips and nozzles used for installing IKO Innovi ™ TPO thermoplastic polyolefin roofs so that no parts become clogged with residual adhesive. This product may also be used to clean and remove over-spray of InnoviBond TPO adhesives from field membrane and membrane seam areas.
InnoviBond SPR — Canister Flush Solution is a solvent-based cleaner that is dispensed from pressurized canisters. This product is not for use in VOC-regulated markets. InnoviBond SPR — Canister Flush Solution is an important component in the successful installation of an IKO InnoviTPO commercial roofing system and can help qualify for an appropriate IKO Diamond Shield Limited Warranty.
-
InnoviBond™ SPR — Canister Flush Solution LVOC
InnoviBond™ SPR — Canister Flush Solution LVOC is excellent for cleaning and flushing adhesive applicators, hoses, spray tips and nozzles used for installing IKO Innovi ™ TPO thermoplastic polyolefin single-ply roofs so that no parts become clogged with residual adhesive. This product may also be used to clean and remove over-spray of InnoviBond TPO adhesives from field membrane and membrane seam areas.
InnoviBond SPR — Canister Flush Solution LVOC is a solvent-based cleaner that is dispensed from pressurized canisters. With a VOC content of 14 g/L, this product is approved for use in VOC-regulated markets. InnoviBond SPR — Canister Flush Solution LVOC is an important component in the successful installation of an IKO InnoviTPO commercial roofing system and can help qualify for an appropriate IKO Diamond Shield Limited Warranty.
Primers & Pre-Wash
-

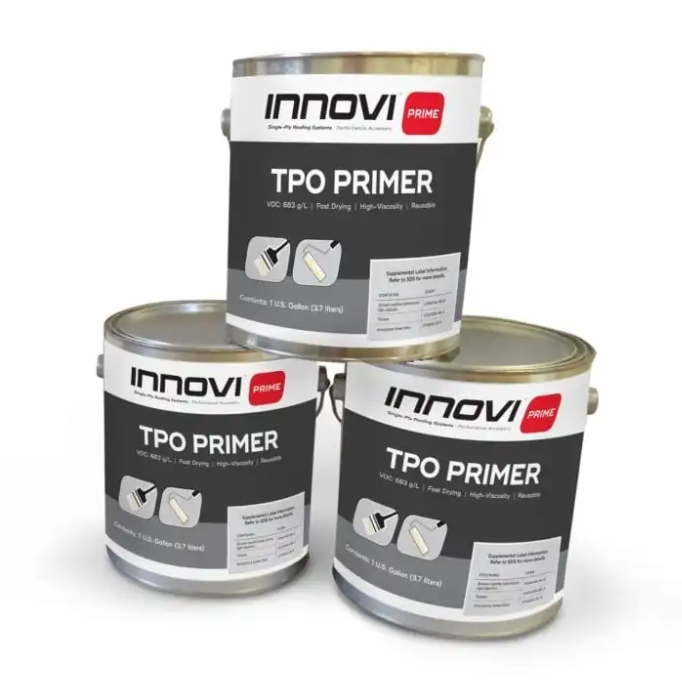

InnoviPrime™ TPO Primer
InnoviPrime™ TPO Primer is used for easy installation of IKO Innovi™ TPO thermoplastic polyolefin single-ply roofs. InnoviPrime TPO primer has a unique high-viscosity polymeric formulation that ensures uniform coverage on both horizontal and vertical surfaces. It does not run or puddle and dries quickly, speeding installation. InnoviPrime TPO Primer provides excellent adhesion to TPO, metals, wood, concrete, OSB and plywood.
InnoviPrime TPO Primer prepares TPO membranes to receive seam tapes, cover tapes and flashings, resulting in a roof system with all compatible components and accessories. Available in 3-gallon (11.3-L) containers, InnoviPrime TPO Primer is applied with a fully saturated brush or scouring pad. InnoviPrime TPO Primer is an important component in the successful installation of an IKO InnoviTPO commercial roofing system and can help qualify for an appropriate IKO Diamond Shield Limited Warranty.
-

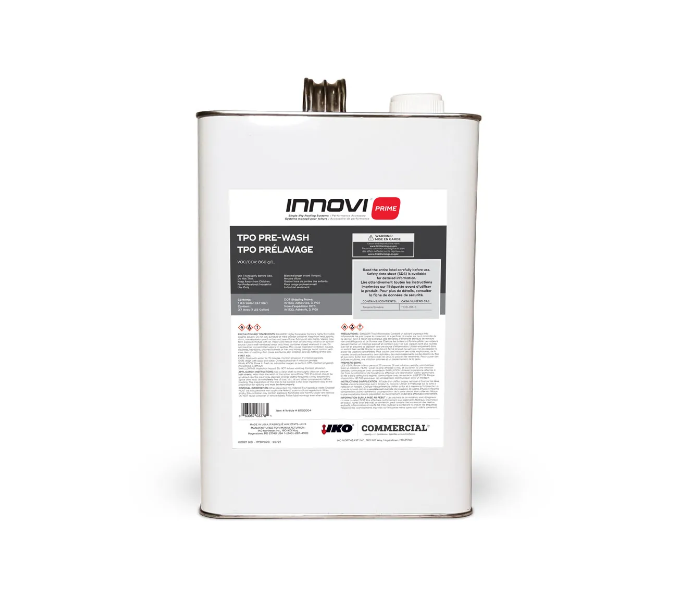

InnoviPrime™ TPO Pre-Wash
InnoviPrime™ TPO Pre-Wash is excellent for cleaning dirt and contaminants from IKO Innovi ™ TPO thermoplastic polyolefin single-ply roofs. When used with clean TPO roofs, InnoviPrime TPO Pre-Wash can perform as both a cleaner and a primer. It may be used prior to welding TPO membrane and weldable flashings, and prior to the application of tape primers and tape flashings.
See IKO details and installation instructions for applications and uses. It is not for use in VOC-regulated markets, and the formulation uses toluene, which is extremely flammable. Innovi Prime TPO Pre-Wash is an important component in the successful installation of an IKO InnoviTPO commercial roofing system and can help qualify for an appropriate IKO Diamond Shield Limited Warranty.
-
InnoviPrime™ TPO Membrane Cleaner LVOC
InnoviPrime™ TPO Membrane Cleaner LVOC is excellent for cleaning dirt and contaminants from IKO Innovi ™ TPO thermoplastic polyolefin single-ply roofs. When used with clean TPO roofs, InnoviPrime TPO Membrane Cleaner LVOC can perform as both a cleaner and a primer. It may be used prior to welding TPO membrane and weldable flashings, and prior to the application of tape primers and tape flashings.
See IKO details and installation instructions for applications and uses. At 218 g/L VOC, this product is intended for use in VOC-regulated markets. Innovi Prime TPO Membrane Cleaner is an important component in the successful installation of an IKO InnoviTPO commercial roofing system and can help qualify for an appropriate IKO Diamond Shield Limited Warranty.
-

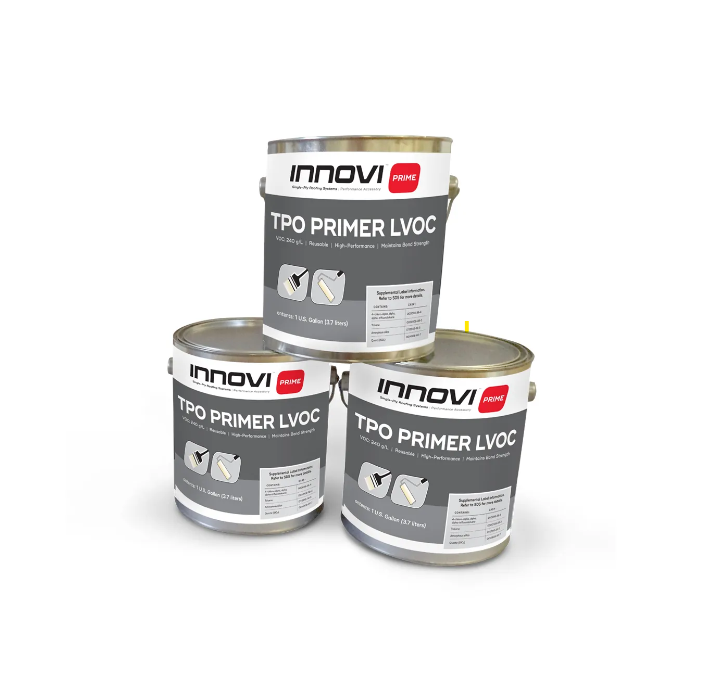

InnoviPrime™ TPO Primer LVOC
InnoviPrime™ TPO Primer LVOC is used for easy installation of IKO Innovi™ TPO thermoplastic polyolefin single-ply roofs. InnoviPrime TPO Primer LVOC has a VOC of less than 250 gallons per liter and is designed for use in regulated markets where low-VOC formulations are required. It has high-performance chemistry, which is ideal for maintaining bond strength after environmental exposure, making it an excellent choice for priming concrete, OSB, plywood and metal surfaces.
InnoviPrime TPO Primer LVOC prepares TPO membranes to receive seam tapes, cover tapes and flashings, resulting in a roof system with all compatible components and accessories. This translucent, off-white low-VOC TPO roof primer is available in liquid form and is applied with a fully saturated brush or scouring pad. InnoviPrime TPO Primer LVOC is an important component in the successful installation of an IKO InnoviTPO commercial roofing system and can help qualify for an appropriate IKO Diamond Shield Limited Warranty.
InnoviSeal
-

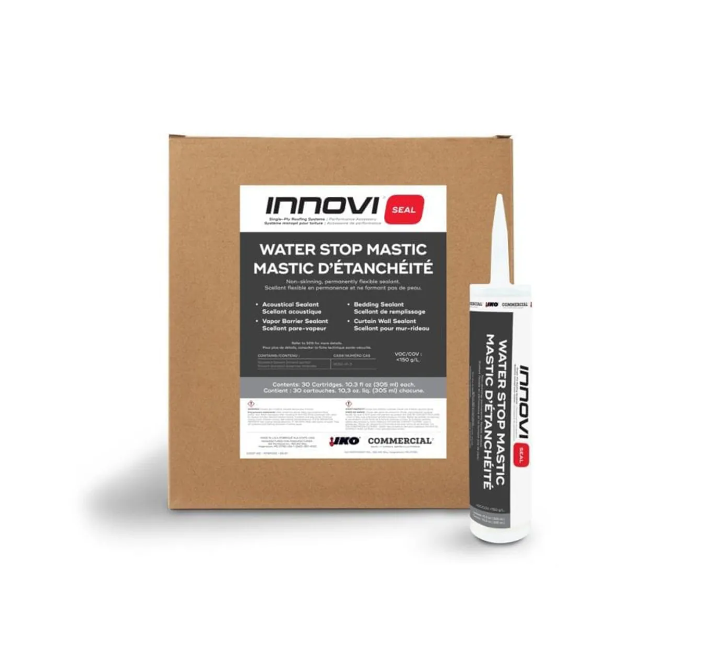

InnoviSeal™ Water Stop Mastic
InnoviSeal™ Water Stop Mastic is used for easy installation of IKO Innovi™ TPO thermoplastic polyolefin single-ply roofs. InnoviSeal Water Stop Mastic adheres to a broad array of materials, such as concrete, masonry, gypsum, metal, glass, plastic and wood. It is a low-VOC non-skinning and non-curing long-term moisture barrier that remains flexible, even at low temperatures, maintaining a positive seal. Its inherent flexibility as a TPO roof caulking also provides excellent gunnability.
InnoviSeal Water Stop Mastic may be used in multiple applications, such as behind termination bars, under roof drains and as an acoustical, roof panel rib and vapor barrier sealant. No primer is required. InnoviSeal Water Stop Mastic is an excellent TPO general purpose sealant, and it is available in 10.3-fluid ounce (305-ml) cartridges. InnoviSeal Water Stop Mastic is an important component in the successful installation of an IKO InnoviTPO commercial roofing system and can help qualify for an appropriate IKO Diamond Shield Limited Warranty.
-

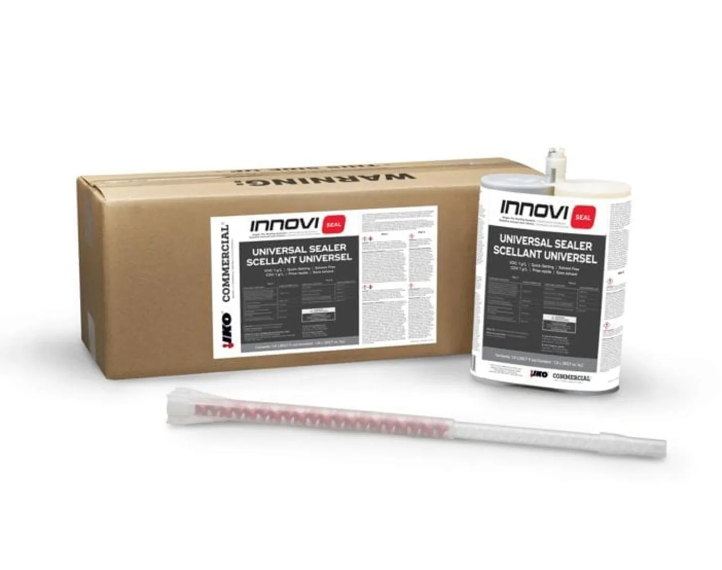

InnoviSeal™ Universal Sealer
InnoviSeal™ Universal Sealer is used for easy installation of IKO Innovi™ TPO thermoplastic polyolefin single-ply roofs. InnoviSeal Universal Sealer has a low-VOC and low-odor formulation and is ready to use with no premixing, resulting in labor savings during installation. InnoviSeal Universal Sealer is elastomeric and remains flexible while absorbing stresses. Universal Sealer is elastomeric and remains flexible while absorbing stresses.
This sealant does not have temperature restrictions and cures fast, even in cold climates. The cure is a chemical cross-linking process, ensuring quick-sealing capabilities. InnoviSeal Universal Sealer is available in 1.5-liter cartridges. InnoviSeal Universal Sealer is an important component in the successful installation of an IKO InnoviTPO commercial roofing system and can help qualify for an appropriate IKO Diamond Shield Limited Warranty.
-

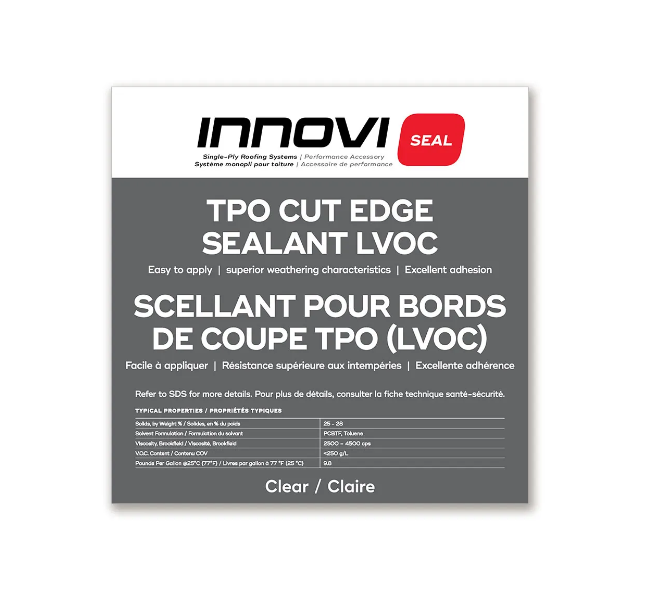

InnoviSealTM TPO Cut Edge Sealant LVOC
InnoviSeal™ TPO Cut Edge Sealant is used for easy installation of IKO Innovi™ TPO thermoplastic polyolefin single-ply roofs. It is elastomer-based and engineered to seal the exposed, cut edges of TPO membrane. Resistant to cracking and shrinking after application, resulting in an exceptional seal, this sealant is especially suitable where low-VOC formulations are required.
When feathered in, InnoviSeal TPO Cut Edge Sealant can be leveled as applied. This is a significant finishing detail that protects seam edges from freeze-thaw. InnoviSeal TPO Cut Edge Sealant is clear and is available in a 16 ounce (473 ml) squeeze bottle. InnoviSeal TPO Cut Edge Sealant is an important component in the successful installation of an IKO InnoviTPO commercial roofing system and can help qualify for an appropriate IKO Diamond Shield Limited Warranty.
InnoviBoot™
-

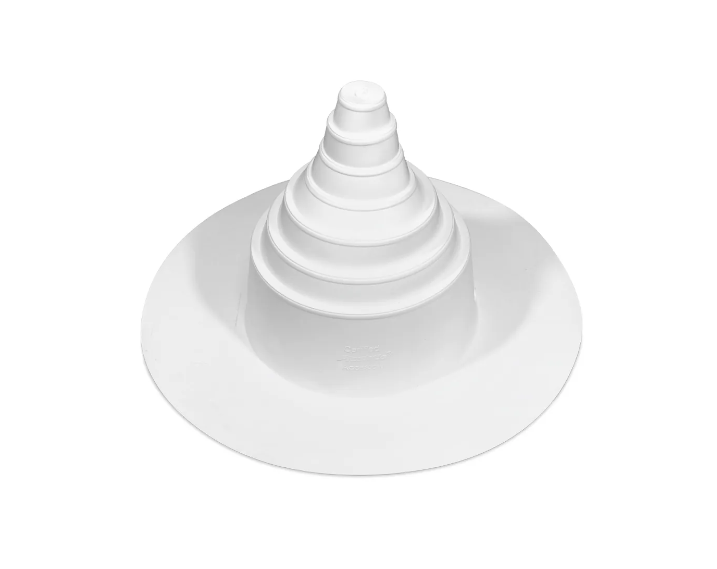

InnoviBoot™ TPO Universal Pipe Boots
InnoviBoot™ TPO Universal Pipe Boots are used for easy installation of IKO Innovi™ TPO thermoplastic polyolefin single-ply roofs. InnoviBoot TPO Pipe Boots are made from 60-mil reinforced TPO and can fit 1-inch (26-mm) to 6-inch (152.4-mm) diameter round penetrations, making them an ideal flashing for many demanding roofing applications.
Field installation is as easy as heat-welding the boot to the roofing membrane and attaching the provided stainless-steel hose clamp to secure the collar around the penetration. InnoviBoot TPO Universal Pipe Boots are available in white, grey and tan, and are supplied 10 per box. InnoviBoot TPO Universal Pipe Boots are important components in the successful installation of an IKO InnoviTPO commercial roofing system and can help qualify for an appropriate IKO Diamond Shield Limited Warranty.
-

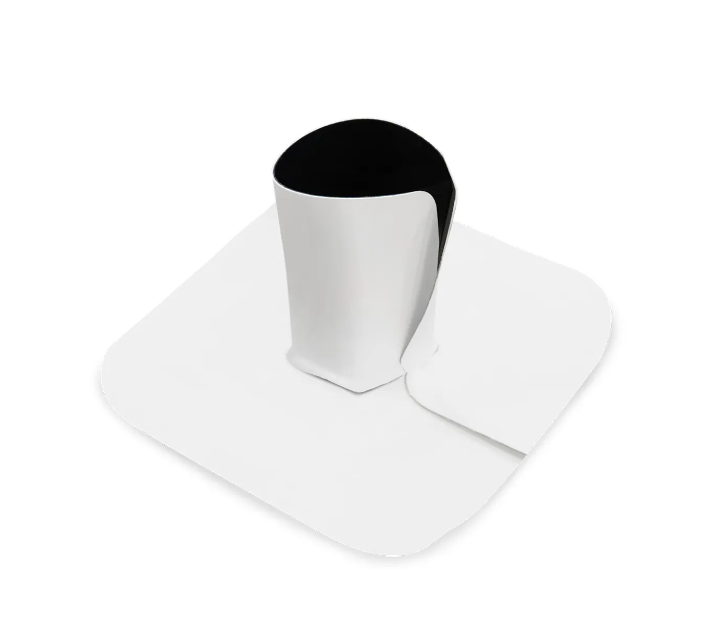

InnoviBoot™ TPO Split Square Boots
InnoviBoot™ TPO Split Square Boots are used for easy installation of IKO Innovi ™ TPO thermoplastic polyolefin single-ply roofs. InnoviBoot TPO Split Square Boots are made from 60-mil reinforced TPO and are designed to envelop common square penetrations where typical “closed” boots are unable to pass over obstructions. They provide a fast, simple solution to waterproofing posts, columns, railings, crossbars and post caps. Factory fabrication ensures quality.
InnoviBoot TPO Split Square Boots are available in white, grey and tan, and are supplied in 2-inch (50.8-mm) and 4-inch (101.6-mm) standard sizes. InnoviBoot TPO Split Square Boots are important components in the successful installation of an IKO InnoviTPO commercial roofing system and can help qualify for an appropriate IKO Diamond Shield Limited Warranty.
-

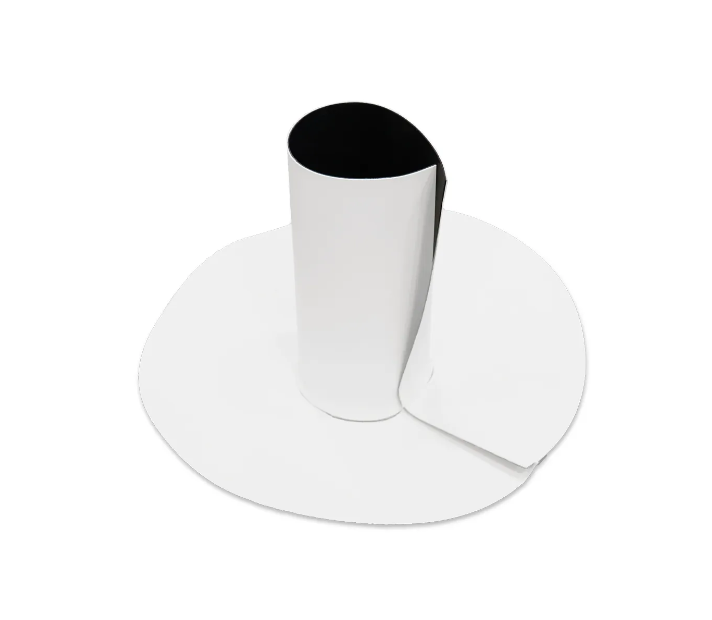

InnoviBoot™ TPO Split Pipe Boots
InnoviBoot™ TPO Split Pipe Boots are used for easy installation of IKO Innovi™ TPO thermoplastic polyolefin single-ply roofs. InnoviBoot TPO Split Pipe Boots are made from 60-mil reinforced TPO and are designed to encircle common cylindrical penetrations where typical “closed” boots are unable to pass over obstructions, like railings, crossbars, caps and collars. Factory fabrication ensures quality, and the overlapping flap makes installation easy.
InnoviBoot TPO Split Pipe Boots are available in white, grey and tan, and are supplied in 1-inch (26-mm) to 6-inch (152.4-mm) standard sizes in 1-inch increments. InnoviBoot TPO Split Pipe Boots are important components in the successful installation of an IKO InnoviTPO commercial roofing system and can help qualify for an appropriate IKO Diamond Shield Limited Warranty.
Metal , Walkways, Fasteners & Plates
-

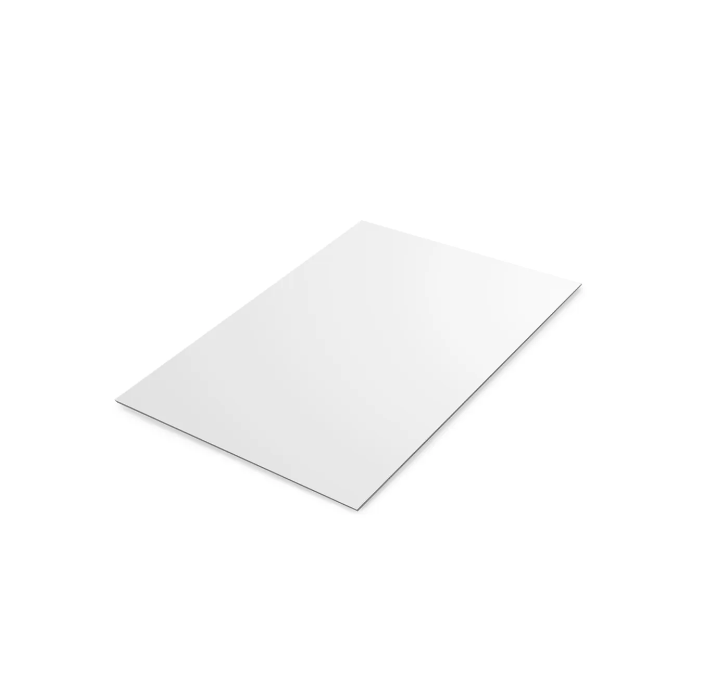

InnoviEdgeTM TPO Coated Metal
Made from 24-gauge galvanized steel with a 25-mil (0.9-mm) nonreinforced TPO membrane coating, InnoviEdge™ TPO Coated Metal sheets are formed by the contractor to meet multiple profiles, including drip edges, gravel stops and copings, as well as curb flashings, sealant pans and scupper sleeves. InnoviEdge TPO Coated Metal accepts direct heat welding of TPO membrane and flashings, and is available in white, grey and tan to match the Innovi™ TPO membrane colors, enabling the building owner to have a consistent aesthetic across their entire commercial roof.
Available in full sheets of 4 ft. x 10 ft. (1.2 m x 3.0 m), with 25 sheets per pallet, InnoviEdge TPO Coated Metal is used for easy installation of IKO InnoviTPO thermoplastic polyolefin single-ply roofs. As an important component in the successful installation of IKO InnoviTPO thermoplastic polyolefin single-ply roofs, InnoviEdge TPO Coated Metal can help qualify for an appropriate IKO Diamond Shield Limited Warranty.
-

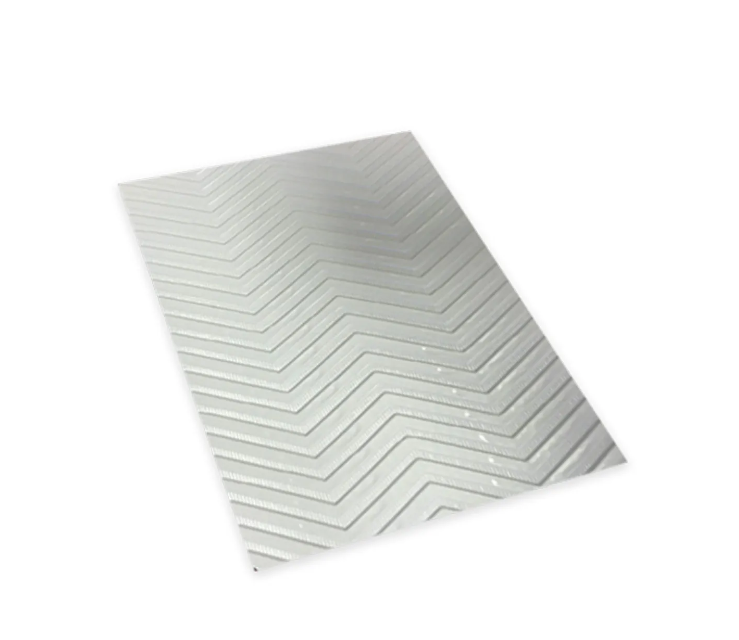

InnoviStepTM TPO Walkway Pad
InnoviStep™ TPO Walkway Pads are used for easy installation of IKO Innovi™ TPO thermoplastic polyolefin single-ply roofs. These TPO walk pads are made from 125-mil-thick TPO-textured sheets and are ideal for high traffic areas. InnoviStep TPO Walkway Pads have high tensile strength and dimensional stability, which make them ideal walk pads for TPO roof systems. They are puncture- and abrasion-resistant, and are excellent for applications around rooftop HVAC units and other frequently serviced rooftop equipment.
InnoviStep TPO walkway roll sizes are 3 ft. x 60 ft. (1 m x 18 m). InnoviStep TPO Walkway Pads are important components in the successful installation of an IKO InnoviTPO commercial roofing system and can help qualify for an appropriate IKO Diamond Shield Limited Warranty.
-

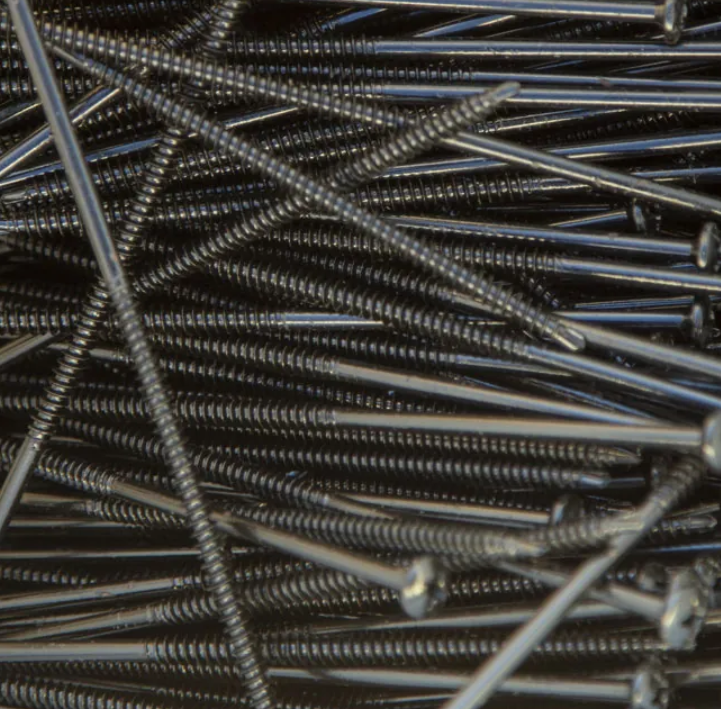

InnoviFast™ TPO single-ply membrane fasteners
InnoviFast™ TPO single-ply membrane fasteners are a complete range of high-quality fasteners and plates for both insulation and membrane attachment. Mechanically attached membranes are the most cost-effective application method for IKO Innovi™ TPO roof systems. The base IKOTherm® polyiso insulation layer(s) can be fastened with InnoviFast fasteners and round plates designed specifically for optimal insulation anchoring. IKO InnoviTPO membranes can be mechanically attached to metal or wood decks, using InnoviFast screws, available in All-Purpose, Stainless Steel and Heavy-Duty designs. InnoviFast Concrete Drive Pins are specifically designed for concrete deck applications. All of these fasteners have compatible 2-inch or 2-3/8-inch diameter seam plates. Fastening of the IKO InnoviTPO membrane at perimeter vertical flashings can be done with InnoviFast Termination Bars. All are integral components in systems qualifying for the IKO Diamond Shield Limited Warranty.
